Grease your landings with our shock absorbing wheel forks
Suspension Details:
4130 Chromoly Steel
TIG welded construction
Powder coated
AN/Grade 8 Bolts w nylocks
Oil-lite bronze bushing
Models
GLU Series

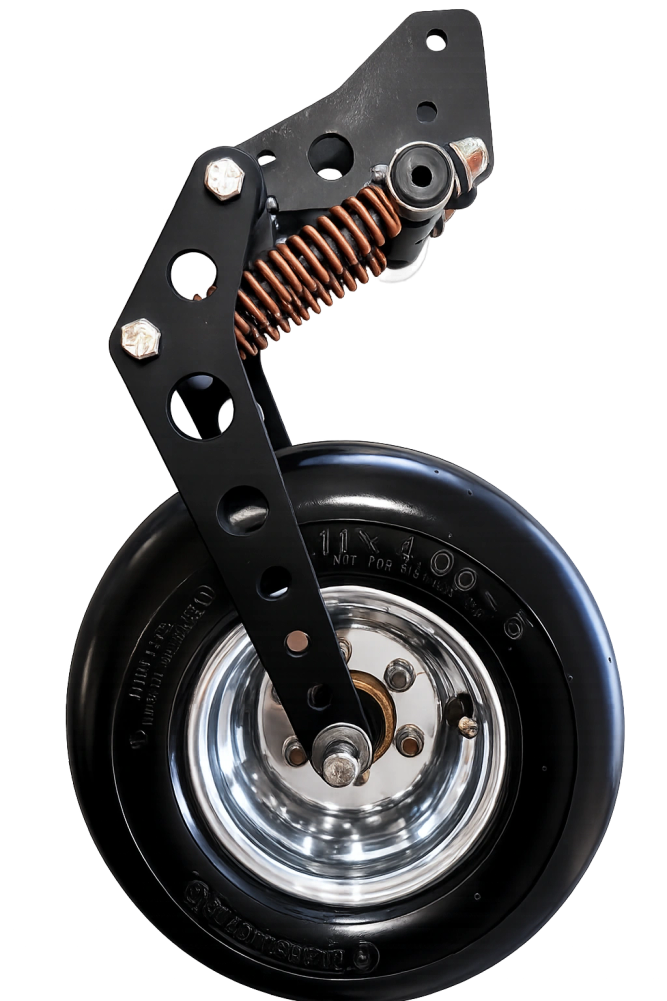

The Greased Landings GLU (Universal) series of nosewheel forks are designed to accommodate a wide variety of aircraft leaving mounting options up to the builder.
GLU-4 accepts a 11x4.00-5 wheel / tire assembly up to 4.5 inches
wide and maximum diameter of 11 inches
Approx weight of 4 lb, 2 oz (1.9 Kg)
GLU-5 accepts the larger 5.00-5 wheel / tire assembly up to 5.5 inches wide and maximum diameter of 13 inches
Approx Weight 4 lb, 9 oz (2.07 kg
GLU-6 accepts the larger 6.00-6 wheel / tire assembly up to 6.5 inches wide and maximum diameter of 16-3/4 inches!
Approx Weight 4 lb, 15 oz (2.24 kg
GLC Series

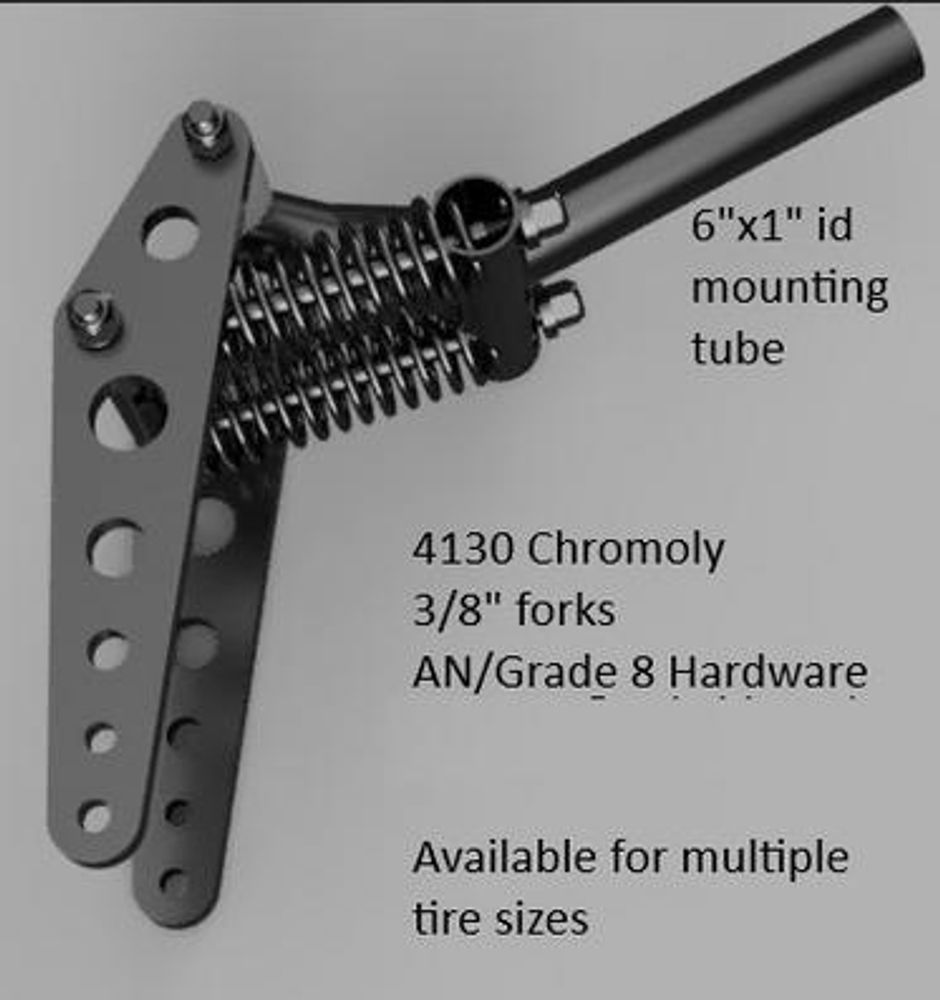

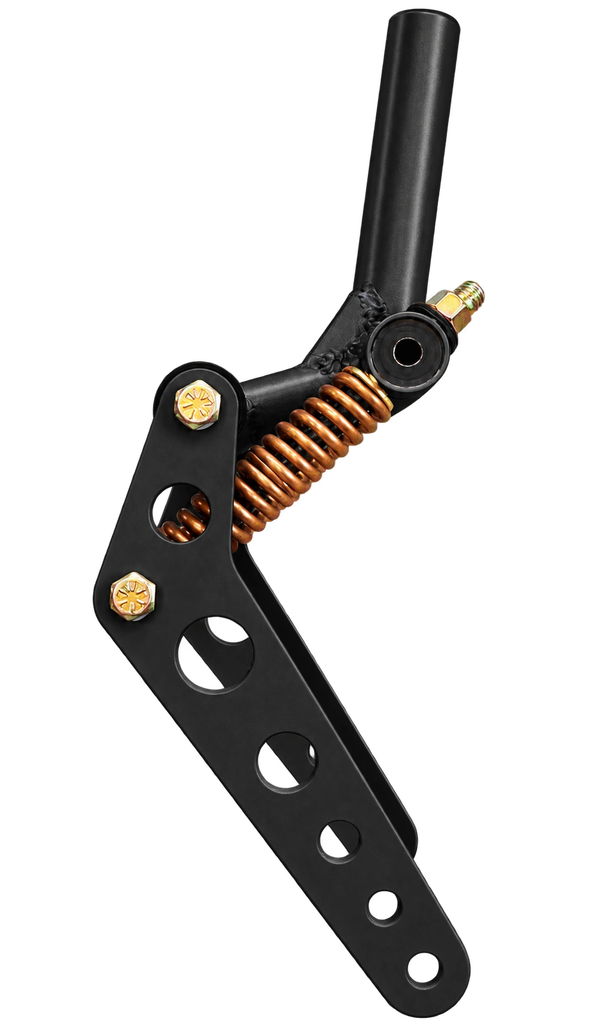

The Greased Landings GLC (Challenger) series of nosewheel forks utilize a stem tube for installation on Challenger, Quicksilver, Excalibur and other aircraft versions that require a 1" ID tube to slip up onto the existing steering tube. User may have to drill hole(s) at the appropriate height to secure to the steering horn mechanism.
GLC-4 accepts a 11x4.00-5 wheel / tire assembly up to 4.5 inches
wide and maximum diameter of 11 inches
Approx weight of 4 lb, 2 oz (1.9 Kg)
GLC-5 accepts the larger 5.00-5 wheel / tire assembly up to 5.5 inches wide and maximum diameter of 13 inches
Approx Weight 4 lb, 9 oz (2.07 kg
GLU-6 accepts the larger 6.00-6 wheel / tire assembly up to 6.5 inches wide and maximum diameter of 16-3/4 inches!
Approx Weight 4 lb, 15 oz (2.24 kg
Gen 2 Bent Legs
Gen 2 Bent Legs are now standard for more vertical suspension on rougher runways.
Mounting Details

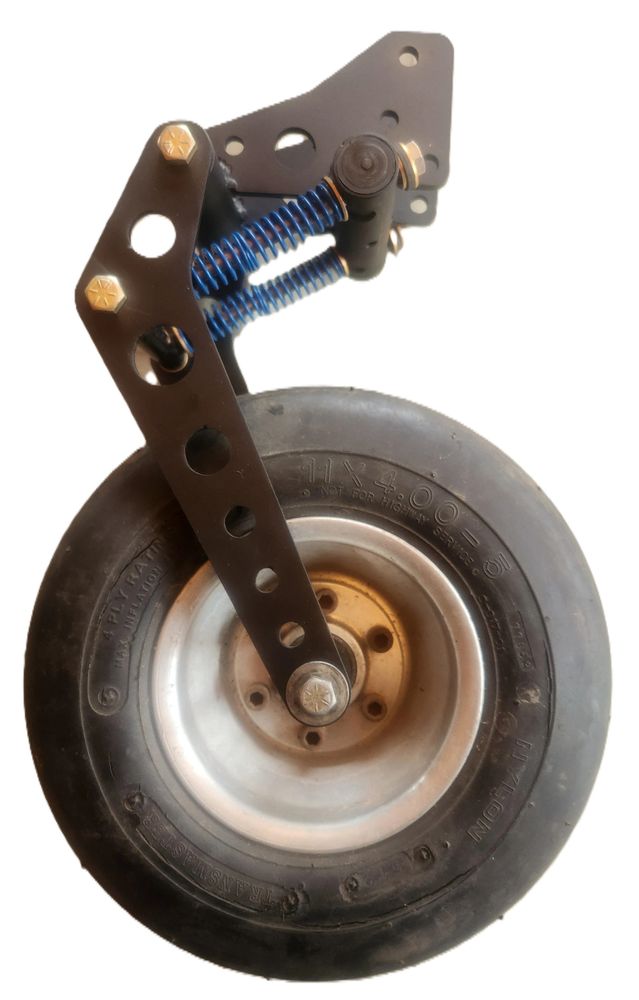

Universal Mounting Design
We have recently changed and simplified the design in order to simplify fabrication and as a result are able to offer our assemblies at lower cost while making them easier for users to add them to a wide range of aircraft.
Universal Mount Details
Our mounts are manufactured to utilize AN5 (5/16-24) bolts with 125,000 psi tensile strength.
Tire size is important
What we need to know to ensure proper fit!
Our standard nosewheel forks fit 4 and 5 inch wheels.
Other sizes available upon request
You may need to add spacers on your 3/8 axle bolt. 3/8" washers work fine
Unlike the standard Challenger, Excalibur and Titan Tornado nosewheels, the Greased Landing nosewheel is serviceable.
Replacement parts are available in the unlikely event you damage it.
In order to ensure your tire will fit inside our nosewheel assembly it is best if we know the width and diameter of your TIRE.
Shown to the right are all 5 inch wheels.....
Can you guess which one wont fit?
Our shock absorbing nose gear weighs under 5 lbs.
BEFORE YOU FLY!
If you have had a hard nosewheel landing, bent your factory or other nosewheel, it is critical that you inspect all of the nosewheel mount and steering components including the rivets ( top and bottom ) that attach the cross tube to the longerons. This should be part of your regular preflight procedure.
PURCHASE ONLINE
GLU-4 Assembly $485.00 including shipping within contiguous USA
GLU-4 Assembly $485.00 including shipping within contiguous USA
Universal mount allows for user installation on a wide variety of aircraft.
Accepts a 11x4.00-5 wheel / tire assembly up to 4.5 inches wide and maximum diameter of 11 inches
GLU-5 Assembly $495.00 including shipping within contiguous USA
GLU-4 Assembly $485.00 including shipping within contiguous USA
Universal mount allows for user installation on a wide variety of aircraft.
accepts the larger 5.00-5 wheel / tire assembly up to 5.5 inches wide and maximum diameter of 13 inches
GLU-6 Assembly $515.00 including shipping within contiguous USA
GLU-6 Assembly $515.00 including shipping within contiguous USA
Universal mount allows for user installation on a wide variety of aircraft.
accepts the larger 6.00-6 wheel / tire assembly up to 6.5 inches wide and maximum diameter of 16-3/4 inches
GLC-4 Assembly $495 including shipping within contiguous USA
GLC-4 Assembly $495 including shipping within contiguous USA
GLU-6 Assembly $515.00 including shipping within contiguous USA
For installation on Challenger ELSA aircraft.
Accepts a 11x4.00-5 wheel / tire assembly up to 4.5 inches wide and maximum diameter of 11 inches
GLC-5 Assembly $515 including shipping within contiguous USA
GLC-4 Assembly $495 including shipping within contiguous USA
GLC-5 Assembly $515 including shipping within contiguous USA
For installation on Challenger ELSA aircraft.
accepts the larger 5.00-5 wheel / tire assembly up to 5.5 inches wide and maximum diameter of 13 inches
GLC-6 Assembly $535 including shipping within contiguous USA
GLC-4 Assembly $495 including shipping within contiguous USA
GLC-5 Assembly $515 including shipping within contiguous USA
For installation on Challenger ELSA aircraft.
accepts the larger 6.00-6 wheel / tire assembly up to 6.5 inches wide and maximum diameter of 16-3/4 inches
Custom Powder Coat Color
Custom requests are welcome!
Custom requests are welcome!
$25
(Black included in standard pricing)
Custom requests are welcome!
Custom requests are welcome!
Custom requests are welcome!
We love helping you customize your project. E-mail or call us with your questions
Springs
Custom requests are welcome!
Springs
Contact us for information and purchasing options for springs
